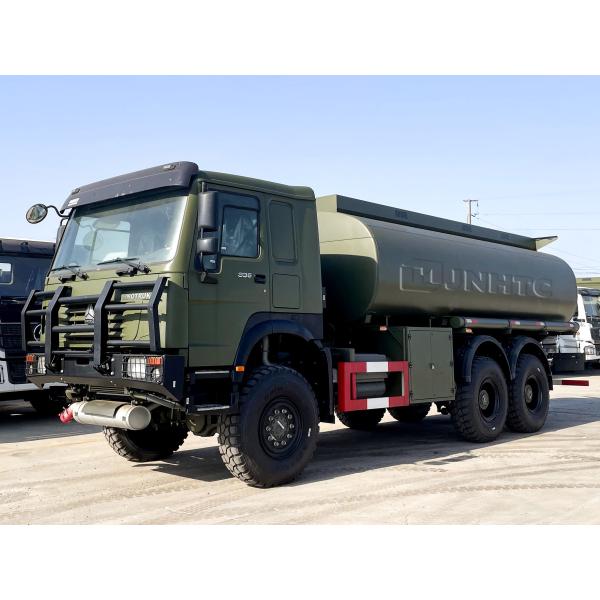

| | SINOTRUK HOWO 6X6 Oil Tank Truck 20CBM |
| Chassis Model | ZZ1257N4341W |
| Driving Type | LHD (RHD is optional) |
|
Cabin
| HW76, with one sleeper and two seats, double arm windscreen wiper system with
three speeds, damped adjustable driver's seat, with heating and ventilating system,
exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner,
with transverse stabilizer, with four piont support floating suspension+shock absorber. |
| Engine | Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47, Euro 2, 400HP
6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R speeds , with PTO |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | HF9,1x9000 KGS
Steering with double T-cross section beam |
| Rear Axle | HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential
locks between wheels and axles.
Ratio:4.8 / 5.73 |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm,reinforced
Sub-frame all cold riveted cross members Front suspension:10 semi elliptic leaf
spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on
front shaft and rear wheels
Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tyres | 295/80R22.5, tubeless tyres with one spare tyre, 12.00R20 radial tire for option |
| Fuel Tank | 400L |
| Oil Tank Body | 20 Cubic Meters, can be customized |
